Dot Pin Marking / Punching Machine

  • Home
  • Product Identification
  • Dot Pin Marking / Punching Machine

Permanent and tamper- proof marking on metal & plastic

Details

The DPB 400 Series Dot Pin Marker by Black Pearl delivers permanent, tamper-proof, and deep markings on metal and plastic components. Ideal for logos, serial numbers, and barcodes, it ensures legible and durable marks that withstand harsh industrial environments.

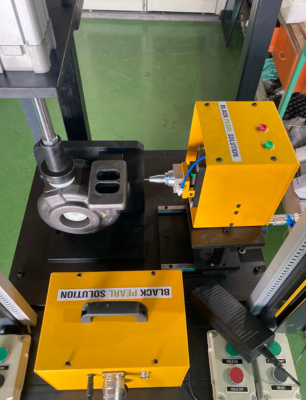

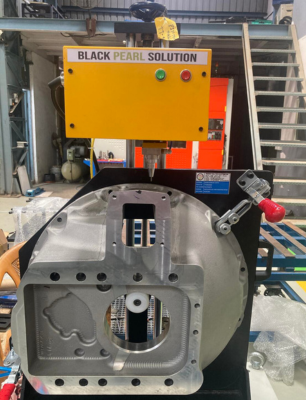

Designed for automotive parts, sheet metal, and general metal components, the DPB 400 Series offers high-speed marking with low maintenance requirements. Now available in a portable model, it provides flexibility without compromising performance. The Black Pearl Continuous Controlled Marker technology guarantees precise, consistent, and reliable marking every time.

  1. Permanent, deep, and legible marking
  2. Tamper-proof and durable
  3. Low maintenance cost
  4. Suitable for metal & plastic components
  5. Portable & high-speed operation

Unique Feature –

  • Precision Dot Pin Technology for permanent, tamper-proof marking
  • High-speed impact marking for serial numbers, logos, and barcodes
  • Over 100,000 cycles of reliable, maintenance-free operation

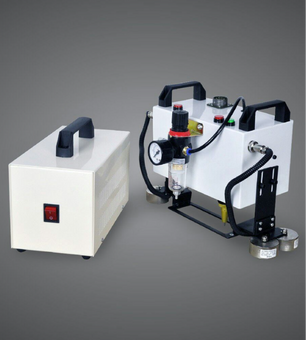

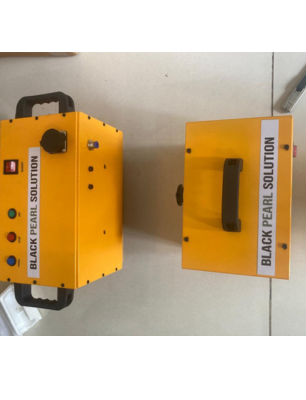

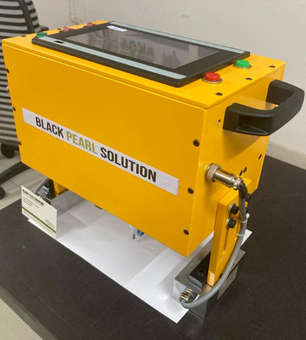

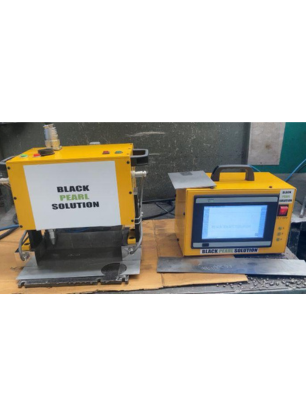

  • Portable and compact design for flexible deployment
  • Compatible with standard industrial systems for easy integration

Benefits –

  • Marks on a wide range of metal & plastic surfaces with no damage
  • Durable construction ensures long-term, low-maintenance performance
  • Low consumable usage keeps recurring costs minimal
  • Permanent, deep, and legible marking reduces traceability issues
  • High precision and speed improve overall productivity
  • Marks remain clear, durable, and tamper-proof even in harsh environments

Dot Pin Marking / Punching Machine


Technical Specification

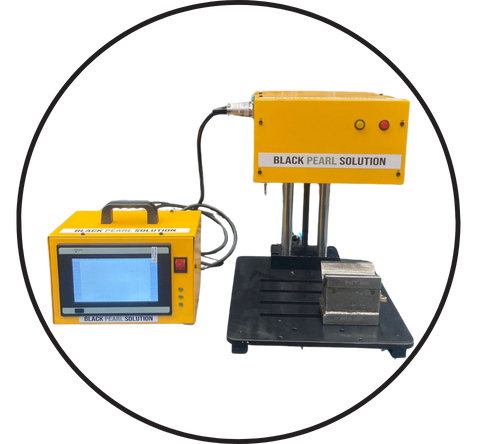

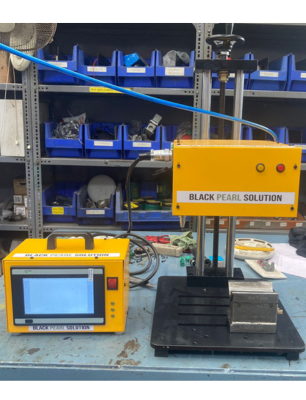

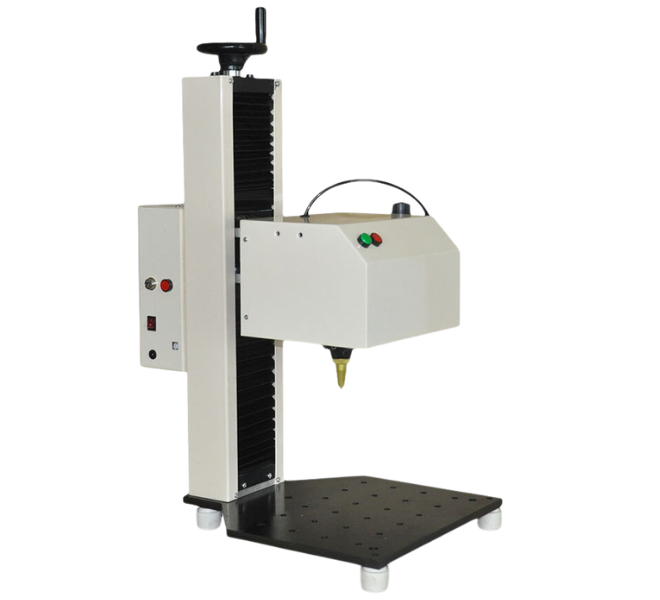

Model Available DPB 400 Series Column Based table top Model
Marking Speed 2-5 characters (2x2mm/Sec)
Marking Depth 0.1 - 1.0 mm
Model Type Pneumatic / Electronic
Impact Freq. 300 Times / Sec
Marking Area 100 * 50 mm - 250 * 250 mm
Marking Depth 0.1mm to 1mm (Depend on Material Hardness)
Air Pressure Req. 0.5 to 0.6 Mpa (in Case of Pneumatic)

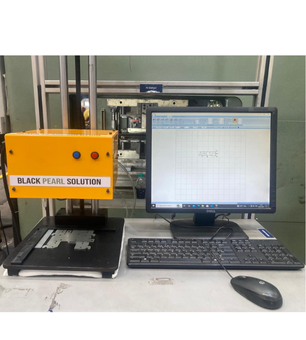

Software Software control with Touch Screen or PC / Laptop based
Marking Material Hardness HRC≤60
Temperature -10~45ºC
Printing needle durability 20000 massage /Niddle (7-9 character massage)
Input Feed to Machine Manual feeding with incremental no.

Models Available
