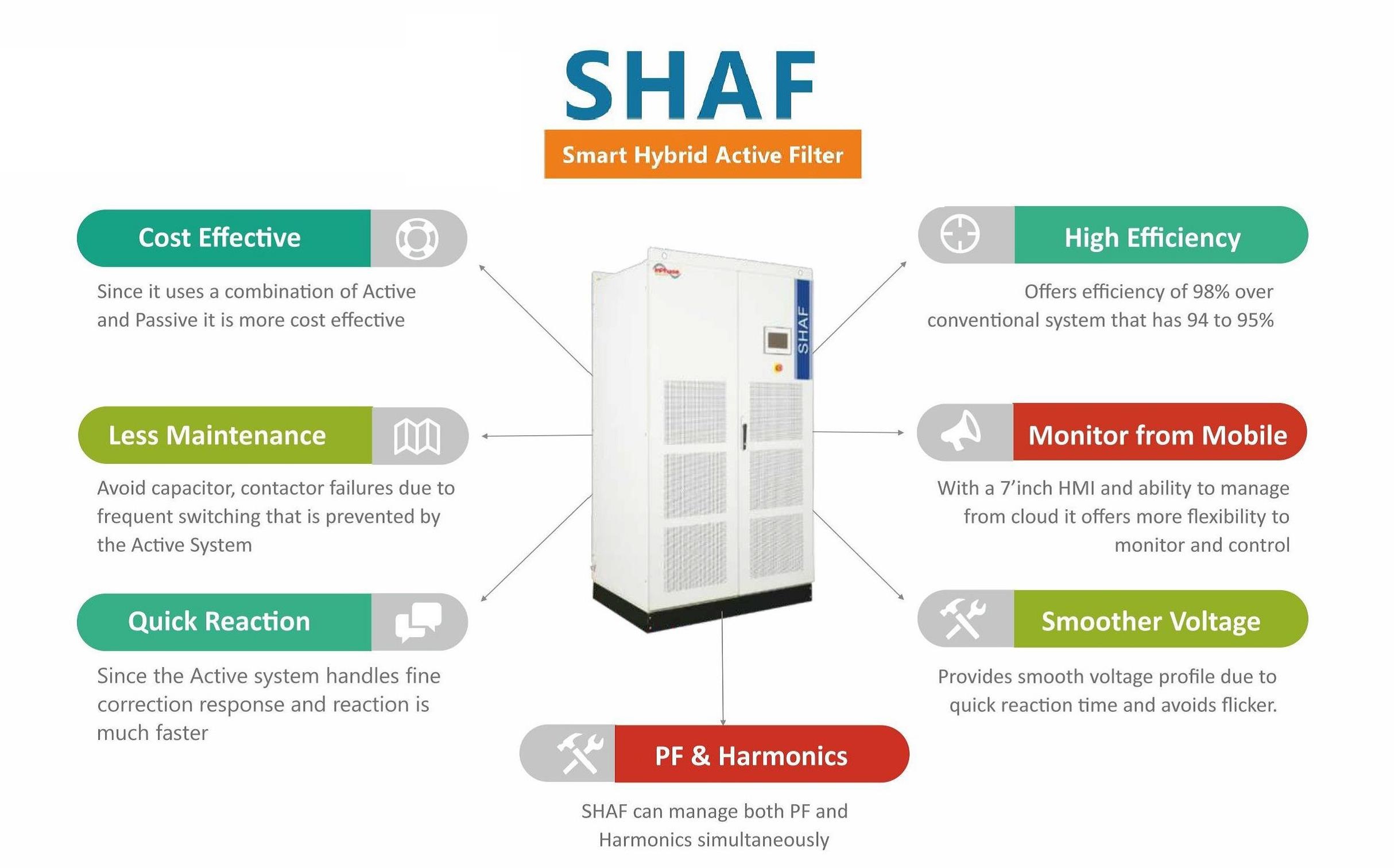

Smart Hybrid Active Filter System

Details

Inexpensive dynamic step less compensation

  • SHAF at a fraction of the price of a full active solution provides dynamic compensation.
  • Realizes step-less and high speed compensation at a lower price point.
  • Achieves true PF with options to control harmonics and unbalance.
  • SHAF avoids leading compensation there by helping achieving unity PF under KVAH billing.
  • Precise KVAR delivery helped to avoid over compensation.
  • Over compensation leads to variations in voltage.
  • SHAF delivers precise KVAR to ensure Smooth Voltage profile.
  • SHAF can do both leading and lagging compensation.

Works with existing APFC

  • SHAF can work with existing APFC/TSC.
  • If APFC/TSC is detuned, then SHAF can work along with it.
  • APFC/TSC controller becomes redundant and can be turned off as SHAF will control and monitor the APFC/TSC system.

Buy SHAF get EMS free!!!

  • SHAF comes with inbuilt EMS that helps to monitor the whole system at the comfort of your mobile
  • Key information like kWh, KVAR, PF, HDi, are displayed every few minutes in real time.
  • Stores all key data up to 3 months and fault logs for ever.
  • Automatically sends SMS during faults.

Details

SHAF


#

Different Types Of Power Quality Products Vs Features

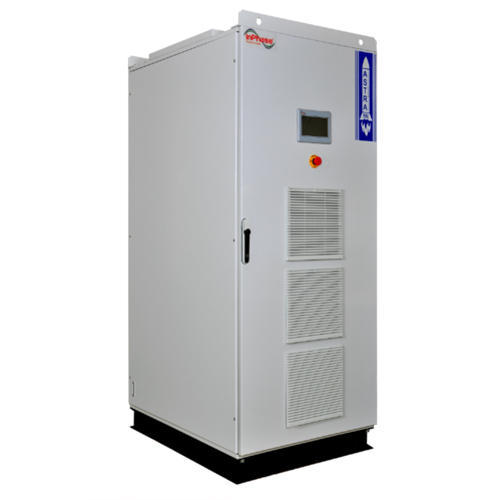

Fixed Capacitor Automatic Power Factor Capacitor(APFC) Thyristor Switched Capacitor(TCS)/RTPFC Smart Hybrid Active Filter (SHAF) Active Harmonic Filter ASTRA
Technology 100% Passive 100% Passive 100% Passive Active & Passive 100% Active
Types Of Technology Capacitor With Series Reactor Fixed Capacitor Switched Detuned Capacitor Banks Thyristor Switched Detund Capacitor Banks Combination Of Detuned Capacitor Bank along with smart ASTRA Active Filter
Step Compensation/Smooth Stepless Compensation Step Compensation Step Compensation Step Compensation Smooth Stepless Compensation Smooth Stepless Compensation
Harmonics Filtering Capability Mostly Not Available Mostly Not Available Mostly Not Available By Active Filter By Active Filter
Unbalance Load Compensation Mostly Not Available Mostly Not Available Mostly Not Available By Active Filter By Active Filter
Realtime Power Parameters Monitering mobile computers Mostly Not Available Mostly Not Available Mostly Not Available Available Available
Realtime Panel Status monitering-Mobile/computers Mostly Not Available Mostly Not Available Mostly Not Available Available Available
Parellel Resonance Link High High High No No
Individual Harmonics Selection Not Possible Not Possible Not Possible Available Available
Harmonics Compensation Capacity Not Possible Not Possible Not Possible 2nd to 61st order of harmonics 3rd to 61st order of harmonics
Temperature Operating Capacity Not Possible Not Possible Not Possible Available Available
Reaction time capacity Slow Slow Faster than APFC In mSec Less than 1mSec
Acheiving Fine Correction of Power Factor Not Possible Not Possible Not Possible Yess because Stepless Yess because Stepless
Capacitive Power Plant(CPP) application No No No Yes Yes
Economical aspects Very less Less Moderate Moderate High
Pre-mature failures indication No No No Yes Yes
Life time because of frequent switching High Very less Moderate High Very High
