Cost effective BH3 Handheld (TIJ) for Porous & Non-Porous Surface

Details

The ideal solution for high-resolution printing on primary & secondary packaging material Black Pearl Solution introducing Reliable, light weight, zero-maintenance and breakdown-free Handheld Printer (TIJ).

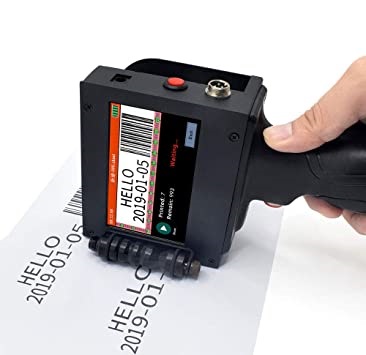

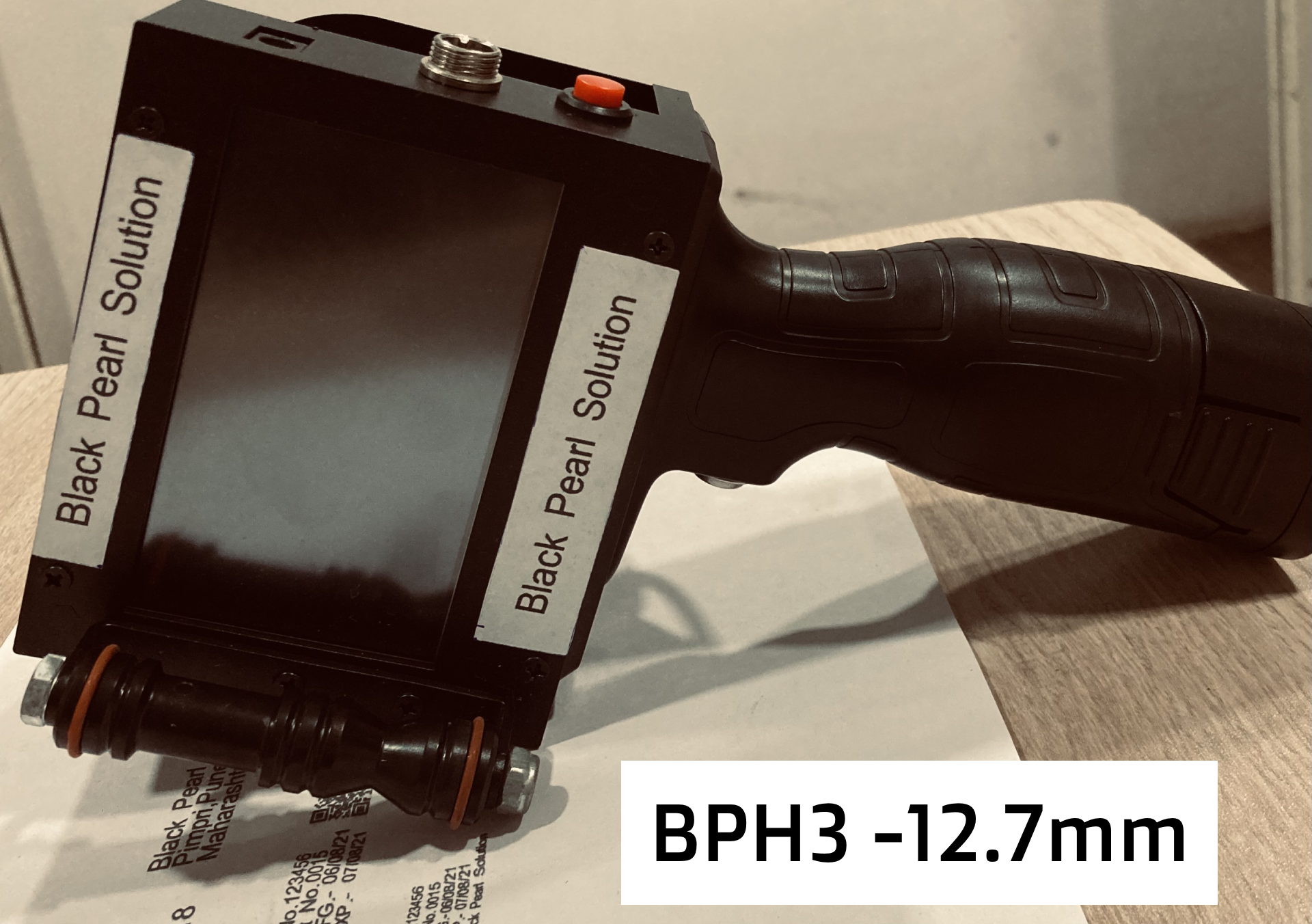

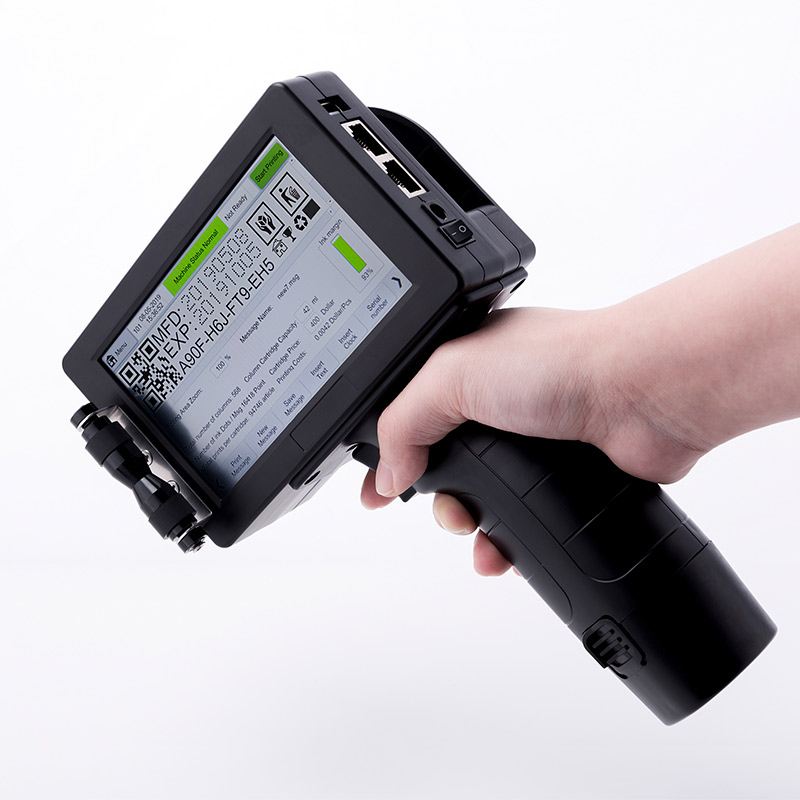

Black Pearl BH3 Handheld batch coding Printer, ergonomically designed comfortable handle, light and compact size, easy to carry, suitable for low volume batch coding on variety of porous & Non porous surface.

Specially designed printer for any small scale Healthcare, Pharmaceutical, Beverage, Food or any other FMCG industry for printing high resolution batch code or 2D matrix Code.

Key Benefits -

  1. No regular essential maintenance hence improved Line efficiency.
  2. Print resolution upto 600dpi delivered scanable 2D/QR codes at high speed
  3. Easy operating for creation of simple & complex massage
  4. System equipped with range of water & Solvent based inks to match diversified substrate

Application –

  1. Offline Batch Coding on - Pouch / Label / Laminate / Mono Carton
  2. Offline Large Character Printing on – Shipper Carton / HDPE Bag
  3. Offline 2D / QR code Printing on – Carton / Label / Pouch / Label

Technical Specification –

  • Model: H3 (Upgraded)
  • Ink volume: 42ml (usually can print 20000,000 characters); Printing accuracy: 600dpi
  • Operation Menu: Android system (easy operation)
  • Languages: English, Korean, Japanese, French, German, Italy, Russian, Vietnam, Arabic, Spanish, Turkish
  • External interface: USB, DB9, DB15, Photoelectric interface
  • Print Capabilities - Date, time, batch number, DM Code, Bar-code, QR Code
  • Printing pictures: All kinds of logos, pictures can be uploaded through USB disk
  • Printing line: 1-15 lines (adjustable); Printing distance: 2-5mm Mechanical Adjustment
  • Ink type& Colors: Quick-dry solvent base ink ; Ink Color: Black, (Optional—white, red, blue, yellow, green)
  • Voltage/Power: DC16.8 lithium battery / ≤5W (10-20 hours working)

Handheld Thermal Inkjet Printer Application


Models Available
